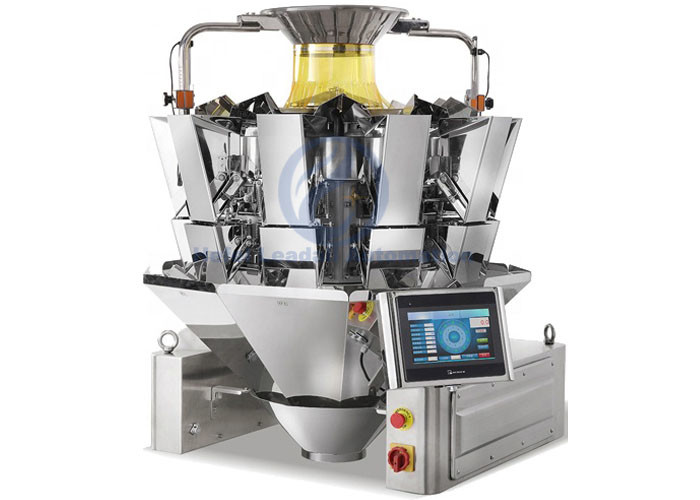

PLC Control Multi Head Weighing Machine , 10 Heads Combination Weigher Machine

Name: PLC Control Multi Head Weighing Machine 10 Heads Combination Weigher Machine
Brand: Hefei Leadall
Price: 1 USD

PLC Control Multi Head Weighing Machine , 10 Heads Combination Weigher Machine Manufactures

Brand Name : Hefei Leadall

Model Number : LA-M1016

Certification : CE ISO

Place of Origin : Hefei, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 40 Sets Per Month

Delivery Time : 10 to 30 work days

Packaging Details : Standard Wooden Cases for Export

Max. Weighing (one hopper) : 1000g

Weighing Accuracy : x (0.5)

Max.Weighing Speed : 70WPM

Hopper Volume : 1.6L / 2.5L

Control System : MCU / PLC

Machine size : 1170(L)*1080(W)*1813(H)mm

Contact Now

14 Heads Plc Combination Weighing Machine / Auto Weighing Machine For 10g To 3kg Granule

Application:

Applicable for weighing of granular, bar-shaped products, such as sunflower / melon seeds, almonds, pistachios, pine nuts, candies, puffed food, beans, frozen food, pet food, snacks, hardware and chemicals.

Main Features:

1	Professional digital weighing module with high precision and good stability
2	Control system: MCU or PLC (optional)
3	Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB
4	Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements
5	Weighing hopper able to discharge in turn to effectively prevent products from blocking
6	Weighing and counting function to meet diverse needs from customers
7	Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine
8	Machine body with SUS304/316 for option; IP65 dust and waterproof design
9	Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance
10	Modular design of control system for easy maintenance and cost-saving.
11	Modular electronic system makes function expanding and maintenance easier and at lowest cost
12	Professiona A/D card with high accuracy and stability. Interchang is availabel
13	HMI program with different authority management, more user-friendly
14	HMI program can be upgraded by U-disk
15	PLC control system applied in the weigher and it makes machine more stable and low fault rate. Functions expanding more easier
16	Remote control is available
17	Optional control system: MCU or PLC(Siemens or AB)

Special Features:

1	Modular electronic system makes function expanding and maintenance easier and at lowest cost
2	Professional A/D card with high accuracy and stability. Interchange is available
3	HMI program with different authority management more user-friendly
4	HMI program can be upgraded by U-disk
5	PLC control system applied in the weigher and it makes machine more stable and low fault rate. Makes machine more stable and low fault rate.Funtions expanding more easier
6	Application software can be upgraded by memory card
7	Remote control is available

Technical Parameters:

Model	LA-M1016-101；LA-P1016-101; LA-M1025-101；LA-P1025-101
Max. Weighing (one hopper)	1,000g
Accuracy	x (0.5)
Min Scale Interval	0.1g
Max. Speed	70 WPM
Hopper Volume	1.6L / 2.5L
Control System	MCU / PLC
HMI	7’’ / 10’’ color touch screen
Power Supply	AC220V±10% 50HZ/60HZ, 1.5KW
Packing Dimension	1,170(L)1,080(W)1,813(H)mm
Net Weight	340kg
Gross Weight	420kg

Relevant supporting equipment:

1	VFFS Packaging Machine line
2	Multihead weigher, Linear weigher, Auger filler, Counting machine
3	Automatic vacuum packing machine line
4	Automatic secondary packing machine(put small bags into large bags)
5	5-50kg Automatic bag feeding packing machine
6	Check weigher, Metal detector, Conveyor, Elevator
7	Automatic carton case packing line
8	Robot Palletizing Line

Normally we have some questions to customers:

1	What is your packing product?
2	How many grams per bag?
3	What is your bag size(the width and length)?
4	What is voltage and Hertz in your local?
5	If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

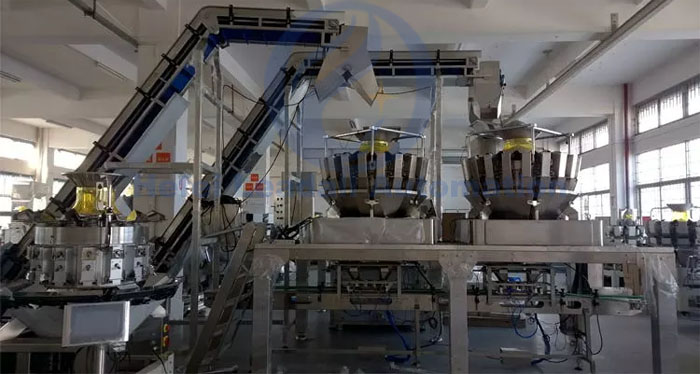

Machine Details:

PLC Control Multi Head Weighing Machine , 10 Heads Combination Weigher Machine
